FITS:
- 2022+ Subaru WRX
- 2022+ Subaru BRZ
- Nissan 400Z
- 2019+ Infiniti Q50
Key Features
- Includes two 1 1/4″ barbed adapters for slip-on hoses
- Threaded 16ORB inlet and outlet accommodate a multitude of -16AN fittings (sold separately)
- Magnetic drain plugs on both end tanks ensure easy draining, no matter the mounting setup
- Massive 2.7″ (68mm) thick two-row core for superior heat rejection
- 9″ fan draws 700CFM, complementing our optimized core
- Multiple mounting points available to fit any custom build
- Includes 1/8″ (3mm) thick powder-coated steel mounting brackets
- Available in both natural or stealth black powder coat finishes
- Mishimoto Lifetime Warranty
Upgrade to the Mishimoto radiator to maximize cooling efficiency, durability, and performance for your drag car, ensuring you stay ahead of the competition with superior cooling capabilities and robust design. The Mishimoto Universal Drag Race Performance Aluminum Radiator is engineered for peak performance on the track. It features convenient threaded adapters for easy hose installation, along with threaded inlet and outlet options for optional -16AN fittings, ensuring flexibility in setup. Magnetic drain plugs enhance durability and maintenance ease, while multiple mounting points and universal brackets cater to various installation preferences. Backed by Mishimoto’s Lifetime Warranty, this radiator guarantees reliability and peace of mind.
Tech Specs
| Overall Height (in) | 10.16 |
|---|---|
| Overall Length (in) | 14.7 |
| Overall Width (in) | 3.52 |
| Core Length (in) | 9.37 |
| Core Height (in) | 9.37 |
| Fluid Capacity (gal) | 0.68 |
| Rows | 2 |
| Inlet (in) | -16 ORB |
| Outlet (in) | -16 ORB |
| Core Thickness (in) | 2.68 |
| Drain Plug Thread Size | M12x1.5 |
| Material | 3A21-Aluminum |
| Coolant Capacity | 0.68 |

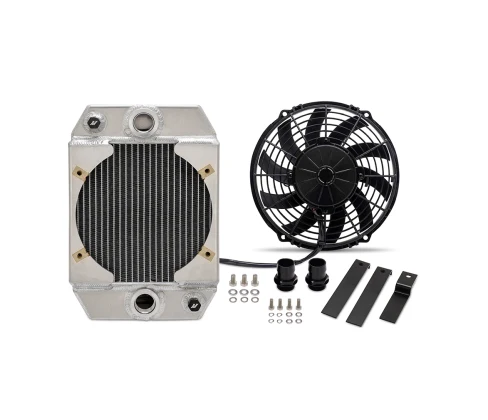

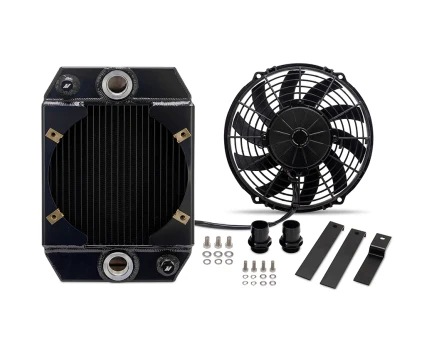

What’s Included
- (1) Mishimoto Performance Radiator
- (2) -16 ORB To 1-1/4″ Hose Barb Fittings
- (2) Magnetic Slotted Drain Plugs
- (1) 9″ HD Fan
- (3) Universal Mounting Brackets
- Mounting Hardware
- Mishimoto Lifetime Warranty
